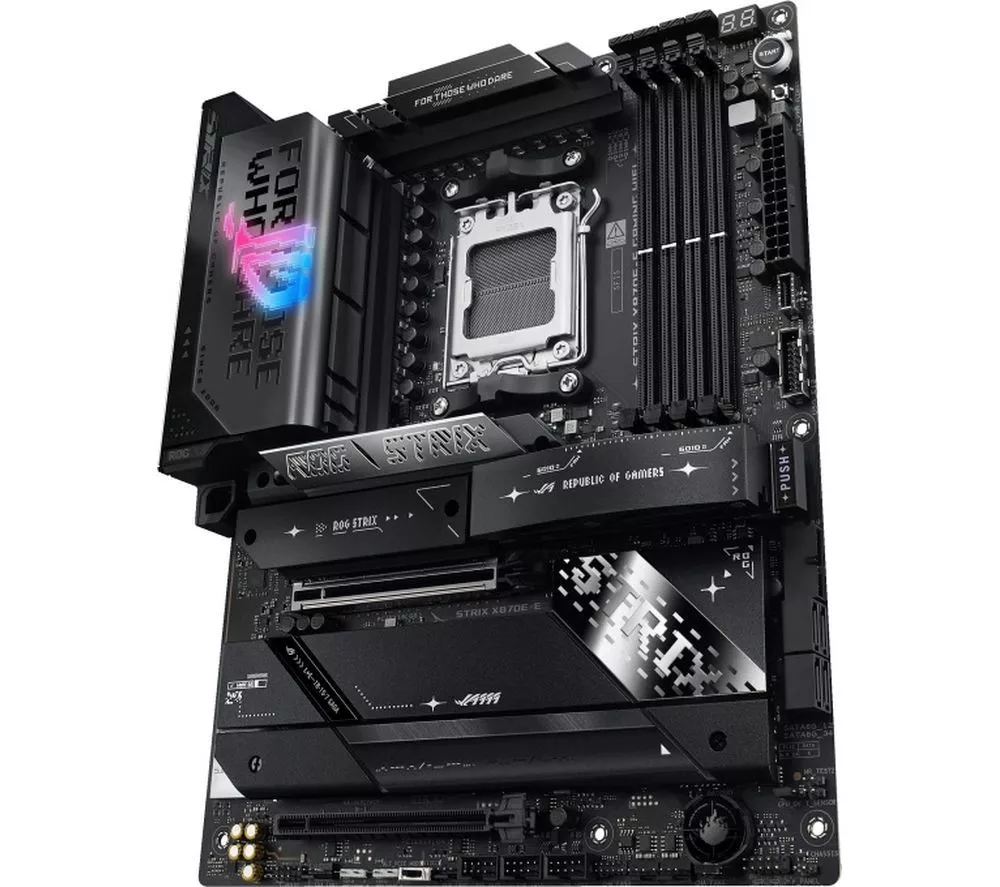

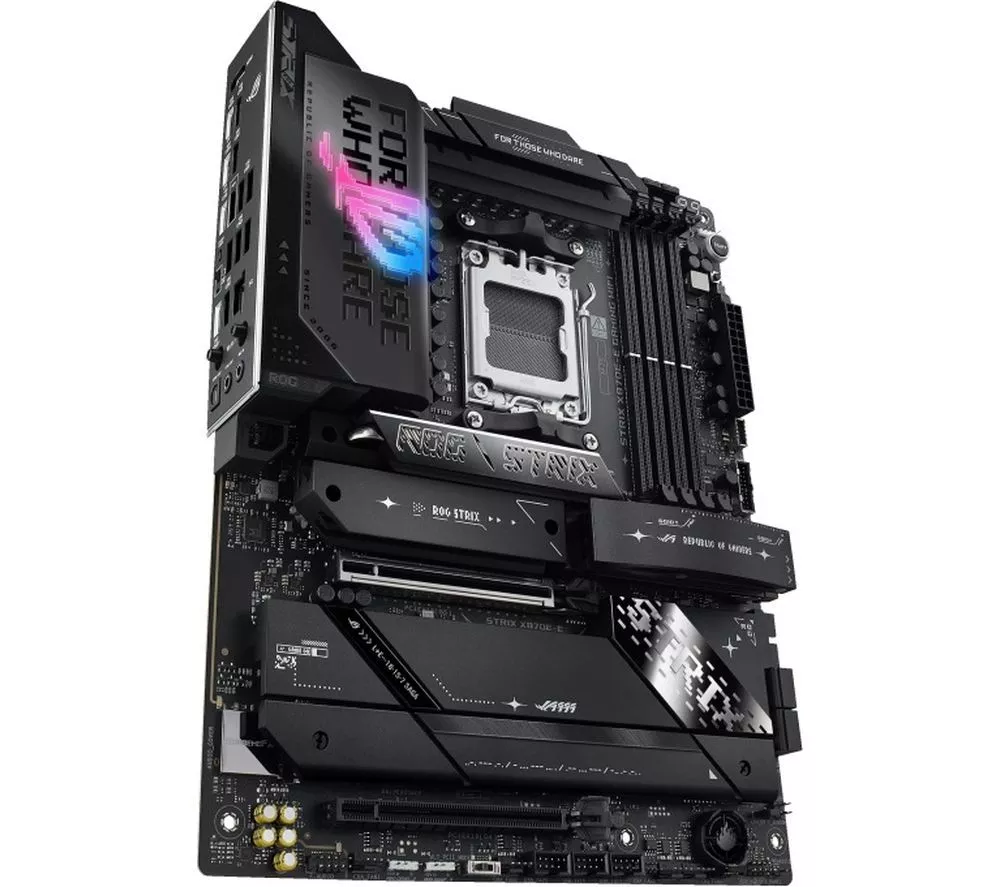

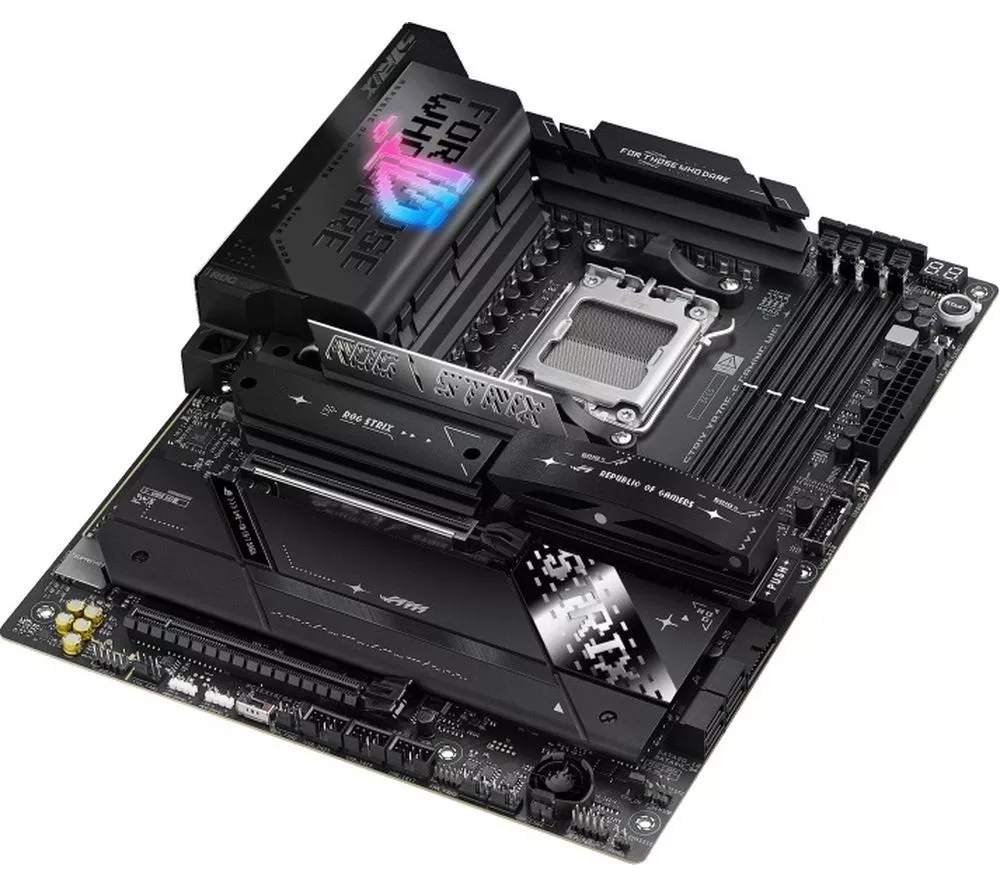

Technical specifications for ASUS ROG STRIX X870E-E WiFi AMD AM5 Motherboard
OVERVIEW
Form factor
ATX
Chipset
AMD X870E
Socket
AMD AM5
Processor models supported
AMD RYZEN 7000 / 8000 / 9000 processors
Memory slots
DIMM (Max RAM: 192 GB) x 4
Memory standard
DDR5
Operating systems supported
Windows 11
EXTERNAL CONNECTIVITY
Video output
– HDMI x 1 – DisplayPort x 1
LAN
– Realtek 5Gb Ethernet x 1 – ASUS LANGuard
Audio
Audio jacks x 2
USB
– USB Type-C x 5 – USB 3.0 x 8 – USB 2.0 x 11
Other external connections
– HDMI™ port x 1 – Wi-Fi Module x 1 – Realtek 5Gb Ethernet x 1 – Gold-plated audio jacks x 2 – Optical S/PDIF out port x 1 – BIOS FlashBack button x 1 – Clear CMOS button x 1
INTERNAL CONNECTIVITY
BIOS
– 256 Mb Flash ROM – UEFI AMI BIOS
Expansion slots
– PCIe 5.0 (x16 slots) x 1 – PCIe 4.0 (x16 slots) x 2
Storage slots
– SATA x 4 (6 GB/s) – M.2 x 5
Cooling
– 4-pin CPU fan header x 1 – 4-pin CPU OPT fan header x 1 – 4-pin AIO Pump header x 1 – 4-pin chassis fan headers x 5
Case
– Power LED x 1 – Clear CMOS header x 1
Buttons
– Power – Reset – BIOS FlashBack
Power
– 24-pin EATX x 1 – 8-pin ATX 12 V x 1
Sensors
Thermal sensor header
Other internal connections
– Addressable Gen 2 headers x 3 – CPU Over Voltage jumper x 1 – FlexKey button x 1 – Front Panel Audio header (AAFP) x 1 – Start button x 1 – 10-1 pin System Panel header x 1 – Thermal Sensor header x 1
GENERAL
Box contents
– Asus ROG STRIX X870E-E WiFi AMD AM5 Motherboard – Cables – SATA 6Gb/s cables x 2 – Additional Cooling Kit – Thermal pad for M.2 22110 x 1 – ASUS Wi-Fi moving antennas x 1 – Cable ties pack x 1 – M.2 Q-Latch package x 1 – M.2 Q-Slides x 2 – ROG key chain x 1 – ROG Strix stickers x 1 – M.2 Rubbers x 5 – Documentation – Quick start guide
Software included
– WinRAR (40 Days Free Trial) – UEFI BIOS – AI Overclocking Guide – ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI – BIOS EZ Mode – ASUS – MyHotkey – Dynamic OC Switcher – FlexKey
