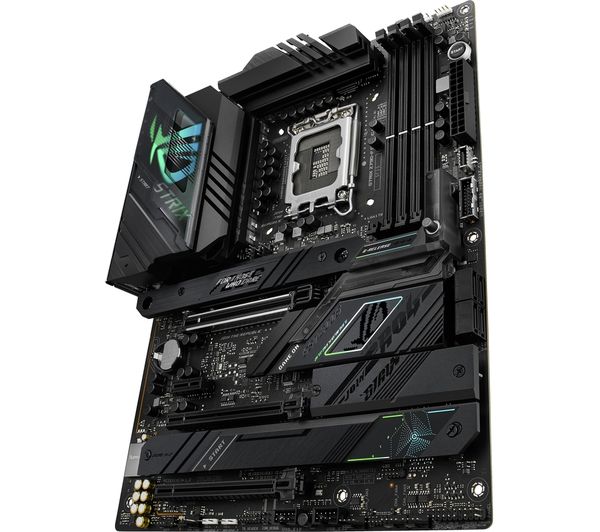

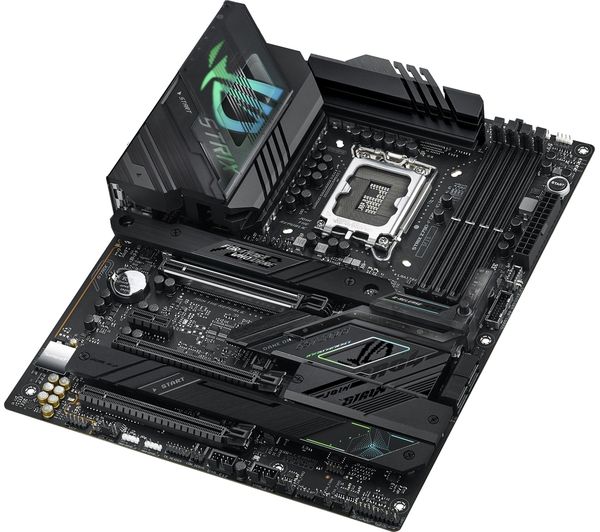

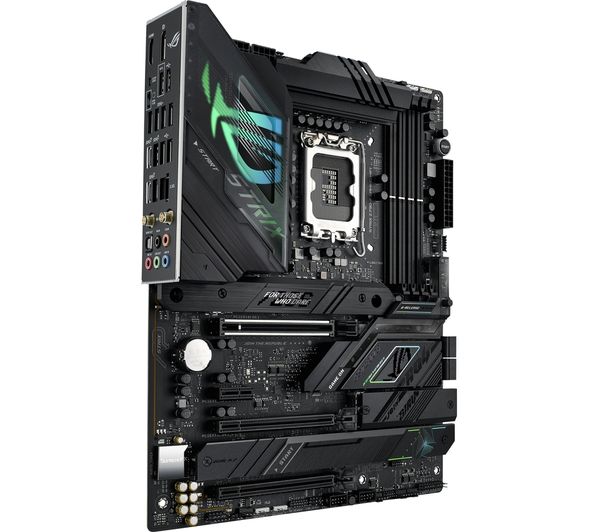

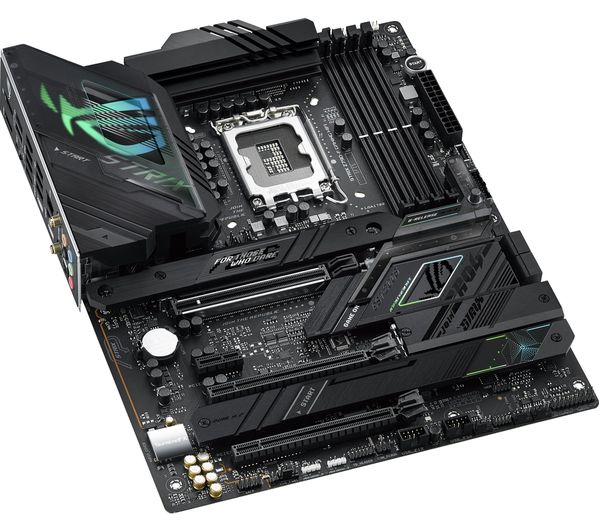

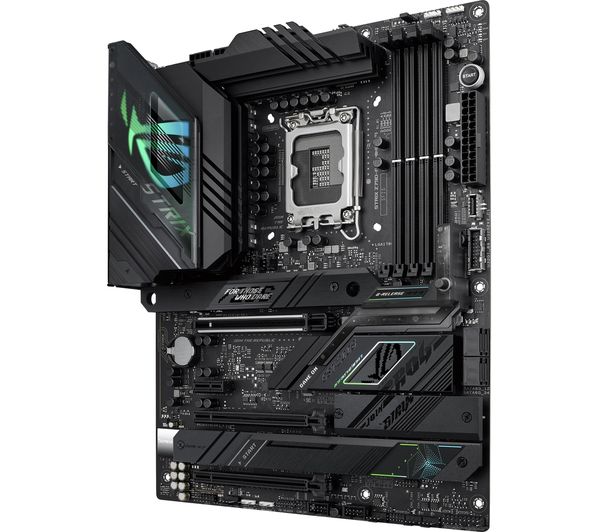

ASUS ROG STRIX Z790-F LGA1700 Motherboard

Name: ASUS ROG STRIX Z790-F LGA1700 Motherboard
SKU: LHA-4711387356548
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Availability:

In stock

✅ Genuine UK Product
📦 Brand New & Factory Sealed
🛡️ Includes Manufacturer's Warranty

Compare

Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® Z790
Memory: DIMM x 4 / Max RAM: 128 GB DDR5
5 years guarantee

£326.76 ~~£389.00~~
Current price is: €374.00.Original price was: €445.23.

In stock

ASUS ROG STRIX Z790-F LGA1700 Motherboard

Technical specifications for ASUS ROG STRIX Z790-F LGA1700 Motherboard

OVERVIEW

Form factor

ATX

Chipset

Intel® Z790

Socket

Intel® LGA1700

Processor models supported

– 13th Gen Intel® Core™ processors
– 12th Gen Intel® Core™ processors
– Intel® Pentium® Gold processors
– Intel® Celeron® processors

Memory slots

4 x DIMM (Max RAM: 128 GB)

Memory standard

DDR5

Operating systems supported

– Windows 10 (64-bit)
– Windows 11

EXTERNAL CONNECTIVITY

Video output

– HDMI x 1
– DisplayPort x 1

LAN

Intel® 2.5Gb Ethernet x 1

Audio

Audio jacks x 5

USB

Rear:
– USB Type-C x 2
– USB 3.2 Gen 2 x 2
– USB 3.2 Gen 1 x 4
– USB 2.0 x 4
Front
– USB 3.2 Gen 2×2 (supports USB Type-C with 30 W Fast charging) x 1
– USB 3.2 Gen 1 (supports 2 additional USB 3.2 Gen 1 ports) x 1
– USB 2.0 (support 4 additional USB 2.0 ports) x 2

Other external connections

– WiFi module x 1
– S/PDIF x 1

INTERNAL CONNECTIVITY

BIOS

UEFI AMI BIOS

Expansion slots

– PCIe 5.0 (x16) x 1
– PCIe 4.0 (x16) (support x4 mode) x 2
– PCIe 3.0 x 1

Storage slots

– SATA x 4 (6 GB/s)
– M.2 x 4

Cooling

– 4-pin CPU fan header x 1
– 4-pin CPU OPT fan header x 1
– 4-pin AIO pump header x 1
– 4-pin chassis fan headers x 5

Case

– Power LED x 1
– HDD LED x 1

Buttons

– Power
– Reset
– Clear CMOS
– BIOS FlashBack

Power

– 24-pin main power x 1
– 8-pin 12 V power x 2

Sensors

Thermal sensor header x 1

Other internal connections

– Addressable Gen 2 headers x 3
– Aura RGB header x 1
– CPU Over Voltage jumper x 1
– Front Panel Audio header (AAFP) x 1
– 20-3 pin System Panel header x 1
– Thunderbolt (USB4) header x 1

USB

– USB 3.2 Gen 2 connector (supports USB Type-C) x 1
– USB 3.2 Gen 1 header (supports 4 additional USB 3.2 Gen 1 ports) x 2
– USB 2.0 headers (supports 4 additional USB 2.0 ports) x 2

GENERAL

Box contents

– Asus ROG STRIX Z790-F LGA1700 Motherboard
– I/O Shield
– WiFi antennas
– Cable ties pack
– DDR5 fan holder
– SATA cables x 2
– M.2 thermal pad
– M.2 Q-Latch package
– M.2 backplate Q-Latch package
– M.2 rubber package x 2
– M.2 backplate rubber package x 1
– ROG key chain
– ROG Strix stickers
– ROG Strix thank you card
– User manual

Software included

– Armoury Crate
– AI Suite 3
– MyAsus
– Norton 360 for Gamers
– AI Overclocking Guide
– FlexKey
– MemTest86
– WinRAR
– ASUS EZ DIY

Weight

1.54 kg

Manufacturer’s guarantee

5 years

Dimensions

49 x 244 x 305 mm (H x W x D)

Colour

Black
