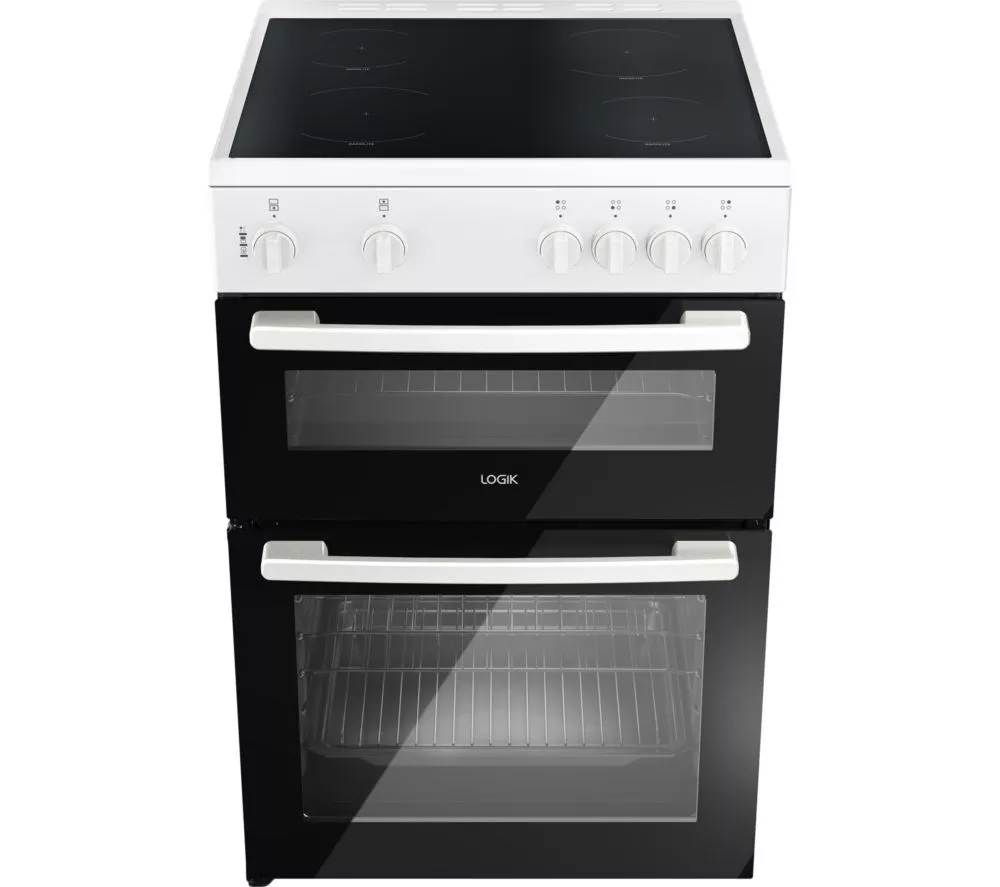

Technical specifications for LOGIK LDOC60W25 60 cm Electric Cooker – White
OVERVIEW
Type
Freestanding electric cooker
Fuel
Electric
Colour
White
Oven type
– Main: electric
– Second: electric
– Second: electric
Number of ovens
2
Hob type
Electric ceramic
Number of zones
4
Number of grills
1
CONTROLS
Control type
Dials
Display type
No
Elements
Ceramic
Safety features
Residual hot surface indicator lamp
OVENS
Oven cleaning
– Main: Enamel coating
– Second: Enamel coating
– Second: Enamel coating
Energy rating
– Main: A
– Second: A
– Second: A
Functions
– Defrost
– Fan heating
– Static function
– Electric grill
– Fan heating
– Static function
– Electric grill
Energy consumption
– Main: 0.80 kWh
– Second: 0.74 kWh
– Second: 0.74 kWh
Viewing window
– Main: Triple glazed
– Second: Triple glazed
– Second: Triple glazed
Oven type
– Main: Fan
– Second: Conventional
– Second: Conventional
Size
– Main: large
– Second: medium
– Second: medium
Capacity
– Main: 69 litres
– Second: 36 litres
– Second: 36 litres
Noise level
– Main: 53.2 dB(A)
– Second: 47.1 dB(A)
– Second: 47.1 dB(A)
Interior light
– Main: yes
– Second: no
– Second: no
Main oven shelves
– 2 shelves
– 5 shelf positions
– 5 shelf positions
Second oven shelves
– 1 shelf
– 2 shelf positions
– 2 shelf positions
Door opening style
– Main: left-hinged
– Second: drop down
– Second: drop down
GRILL
Grill type
Separate full-width electric grill
Grill cleaning
Enamel coating
Boxed dimensions
1020 x 670 x 715 mm (H x W x D)
Box contents
– Logik LDOC60S25 60 cm Electric Cooker
– Grill pan set
– Wire shelves x 3
– Rating label
– Barcode label
– Energy label
– Product fiche
– User manual
– Grill pan set
– Wire shelves x 3
– Rating label
– Barcode label
– Energy label
– Product fiche
– User manual
Weight
56.2 kg
Boxed weight
59.7 kg
Dimensions
900 x 600 x 600 mm (H x W x D)
Recess dimensions
900 x 600 x 600 mm (H x W x D)
Manufacturer’s guarantee
1 year
INSTALLATION
Minimum distance required
– 20 mm to the sides
– 650 mm above
– 650 mm above
Electrical installation
This product requires hardwiring to a 32 Amp fuse and should be installed by a qualified installer, such as one of our Tech Experts.
Electrical power rating
9.6 kW
Cooker legs
Telescopic legs
Power supply
32 Amp (Requires hardwiring to a dedicated cooker circuit)
