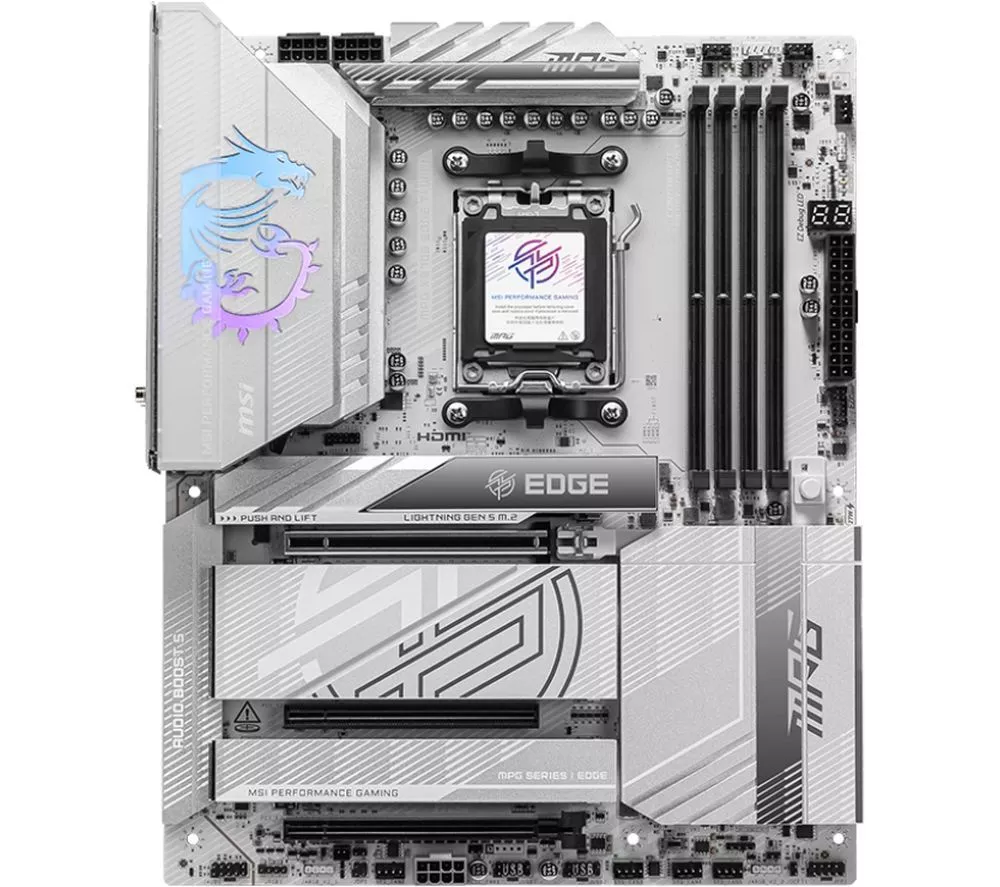

Technical specifications for MSI MPG X870E Edge TI WIFI AM5 Motherboard
OVERVIEW
Form factor
ATX
Chipset
AMD X870E
Socket
AMD AM5
Processor models supported
AMD Ryzen 9000 Series processors
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5
Cooling features
– PWM/DC fans – Enlarged heatsink with heat-pipe – Smart fans – EZ M.2 Shield Frozr II – Heavy plated MOSFET heatsink – MOSFET thermal pads
Operating systems supported
Windows 11 or later

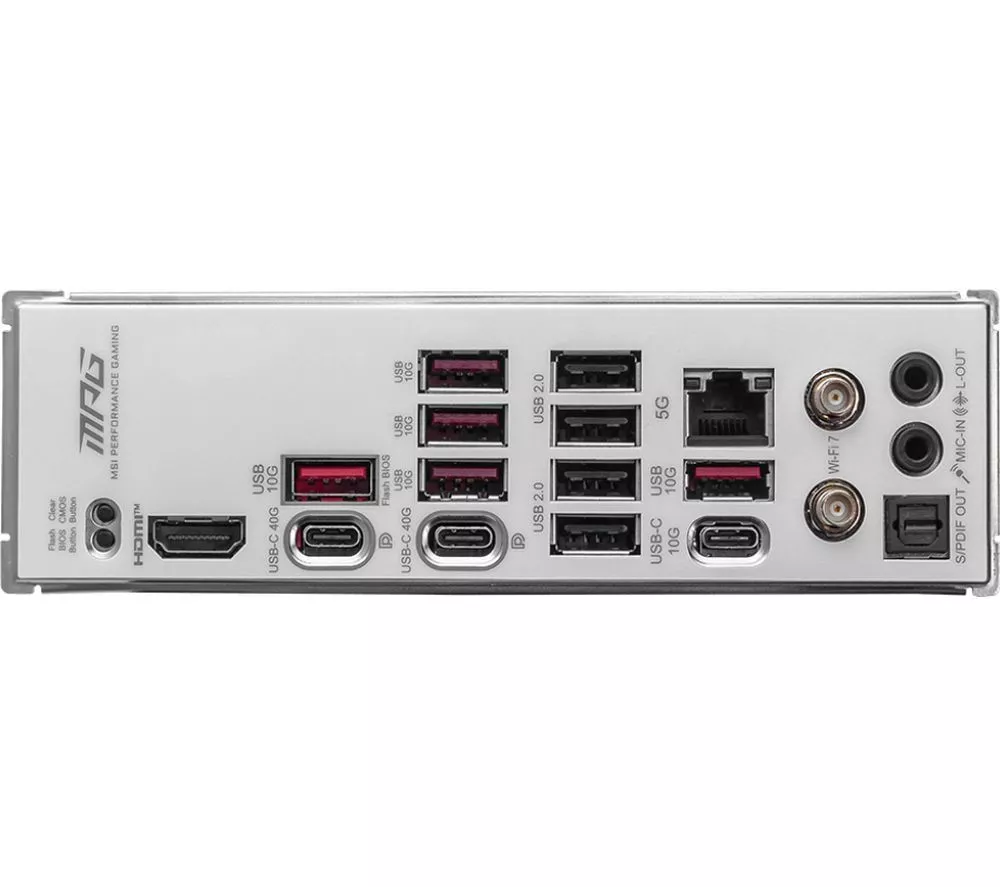

EXTERNAL CONNECTIVITY
Video output
HDMI 2.1 x 1 DisplayPort 1.4 x 2
LAN
Realtek 8126 5G LAN x 1
Audio
8-Channel (7.1) HD Audio with Audio Boost 5
USB
– USB Type-C x 4 – USB 3.2 x 9
INTERNAL CONNECTIVITY
BIOS
CLICK BIOS X
Expansion slots
– PCIe 5.0 (x16) x 1 – PCIe 4.0 (x16) x 1 – PCIe 4.0 (x16) x 1
Storage slots
– SATA x 4 (6 GB/s) – M.2 x 2
Cooling
– CPU Fan x 1 – Combo Fan x 1 – System Fan x 6
Buttons
– Q-Flash BIOS button – Clear CMOS button
Power
– 24-pin ATX x 1 – CPU power connector x 2 – 8-pin ATX x 2
Other internal connections
– Realtek ALC4080 Codec – 7.1-Channel USB High-Performance Audio – Supports up to 32-Bit/384 kHz playback on front panel – Supports S/PDIF output
USB
– USB Type-C x 1 – USB 3.2 x 4 – USB 2.0 x 4
GENERAL

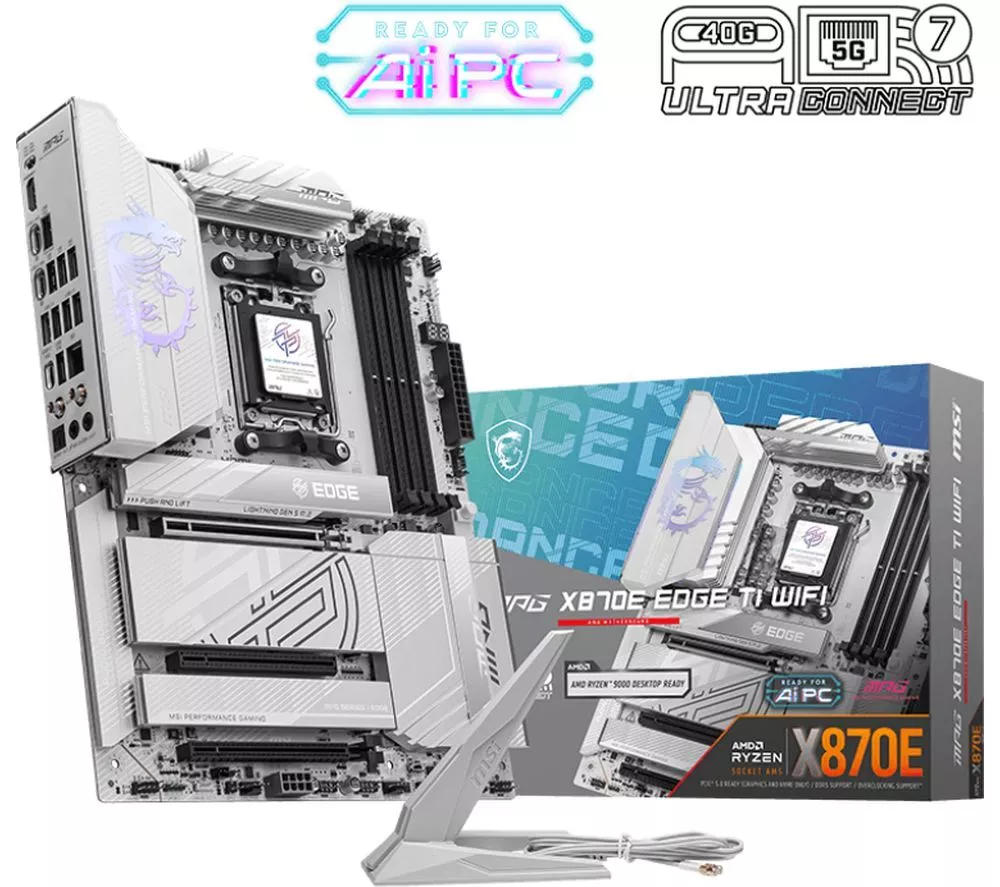

Box contents
– MSI MPG X870E Edge TI WIFI AM5 Motherboard – Quick Installation Guide – Cable Sticker – EZ Wi-Fi Antenna – M.2 Plate Screw – EZ M.2 Clip II remover – USB Drive – 2 x SATA Cables – 1 to 3 EZ Conn-Cable – EZ Front Panel Cable
