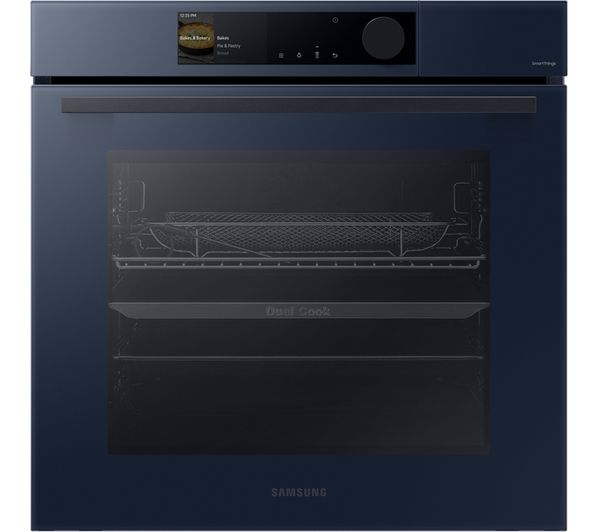

SAMSUNG Series 6 Bespoke NV7B6685AAN Electric Steam Smart Oven – Clean Navy
Technical specifications for SAMSUNG Series 6 Bespoke NV7B6685AAN Electric Steam Smart Oven – Clean Navy
OVERVIEW
Manufacturer’s guarantee
5 years
Type
Built-in single oven
Fuel type
Electric
OVENS
Shelves
3 shelves
Door opening style
Drop down
Usable volume
76 litres
Safety features
Child lock
Interior light
Yes
Type of cleaning
Assisted cleaning / Catalytic liners (back only)
Capacity
76 litres
Size
Extra large
Energy rating
A+
Energy consumption
1.05 kWh
Viewing window
Double-glazed
Number of cavities
1
Oven type
Multifunction
Electrical power rating
3.95 kW
Electrical installation
This product requires hardwiring to a 16 Amp fuse and should be installed by a qualified installer, such as one of our Lifestyle Home Appliances experts.
Power supply
16 Amp (Requires hardwiring to a dedicated circuit)
Minimum distance required
50 mm
GRILL
Grill type
Integrated
Grill features
– Full-width
– Fan grilling
– Eco grill
– Fan grilling
– Eco grill
CONTROLS
Control type
Touch
Cooking functions
17 oven functions, including:
Conventional
Convection
Eco convection
Bottom heat
Bottom heat + convection
Top heat + convection
Large grill
Eco grill
Fan grill
Air sous vide
Pro-roasting
Air fry
Steam cook
Steam assist/steam convection
Steam top heat + convection
Steam bottom heat + convection
Fast preheat
Conventional
Convection
Eco convection
Bottom heat
Bottom heat + convection
Top heat + convection
Large grill
Eco grill
Fan grill
Air sous vide
Pro-roasting
Air fry
Steam cook
Steam assist/steam convection
Steam top heat + convection
Steam bottom heat + convection
Fast preheat
Timer type
Programmable
Display type
LCD display
Boxed dimensions
694 x 660 x 660 mm (H x W x D)
Recess dimensions
579 x 560 x 549 mm (H x W x D)
Box contents
– Samsung Series 6 Bespoke NV7B6685AAN Electric Steam Smart Oven
– Telescopic rail x 2
– Full steam glass bowl x 1
– Wire rack x 1
– Air fry tray x 1
– Tray x 1
– Glass steam tray x 1
– Dual cook divider x 1
– User manual
– Telescopic rail x 2
– Full steam glass bowl x 1
– Wire rack x 1
– Air fry tray x 1
– Tray x 1
– Glass steam tray x 1
– Dual cook divider x 1
– User manual
Colour
Clean navy
Boxed weight
48.8 kg
Weight
42.8 kg
Dimensions
596 x 595 x 570 mm (H x W x D)
SMART
Smartphone app
Samsung SmartThings app
App compatibility
– iOS
– Android
– Android
Connection
WiFi
SKU: LHA-8806094468045
Categories: Appliances, Cooking, Ovens (built-in)
Tags: SAMSUNG, SAMSUNG NV7B6685AAN, SAMSUNG Series 6 Bespoke NV7B6685AAN Electric Steam Smart Oven - Clean Navy
