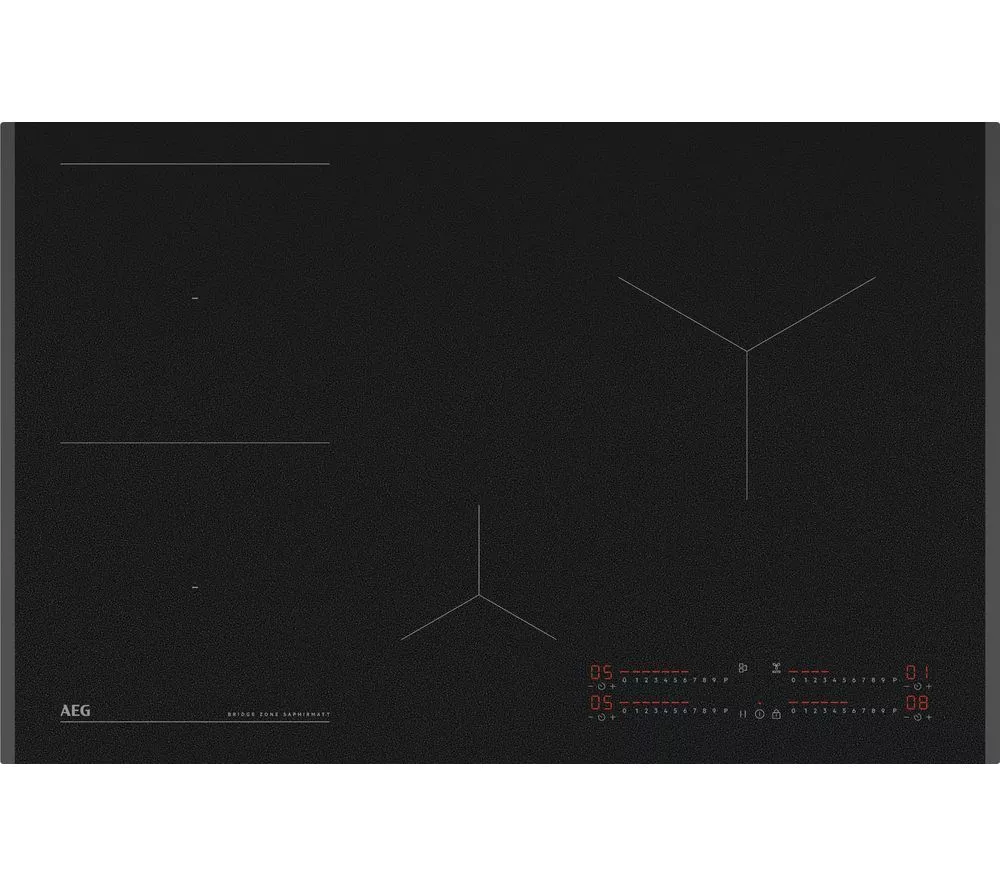

Technical specifications for AEG 6000 Bridge TI84IB00FZ 80 cm Electric Induction Hob – Matte Black
Type
Built-in electric induction hob
Colour
SaphirMatt® black
Fuel type
Electric
CONTROLS
Programmable
Yes
Display type
LED
Control location
Front right
Countdown timer
Yes
Functions
– Boost
– Pause
– Pause
Control type
Touch
HOB
Hob power
– Front right: 1.3 – 3.2 kW
– Front left: 2.3 – 3.2 kW
– Back right: 2.3 – 3.6 kW
– Back left: 2.3 – 3.2 kW
– Front left: 2.3 – 3.2 kW
– Back right: 2.3 – 3.6 kW
– Back left: 2.3 – 3.2 kW
Power levels
9
Number of zones
4
Elements
Induction
Safety features
– Child lock
– Control panel lock
– Residual heat indicators
– Safety cut out
– Control panel lock
– Residual heat indicators
– Safety cut out
Dimensions
44 x 810 x 520 mm (H x W x D)
Weight
11.7 kg
Box contents
– AEG 6000 Bridge TI84IB00FZ 80 cm Electric Induction Hob
– User manual
– User manual

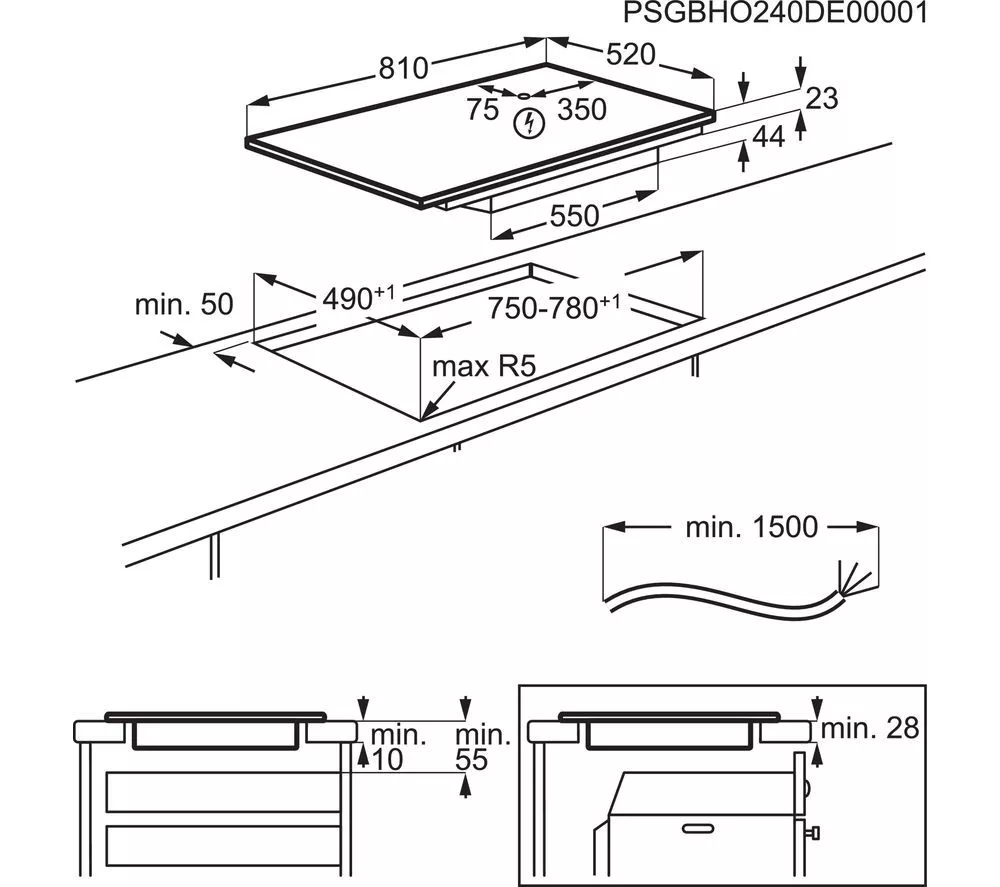

Recess dimensions
44 x 750 x 490 mm (H x W x D)
Boxed dimensions
118 x 868 x 600 mm (H x W x D)
Boxed weight
12.8 kg
Manufacturer’s guarantee
2 years
Power supply
32 Amp (Requires hardwiring to a dedicated cooker circuit)
Electrical power rating
7.4 kW
Electrical installation
This product requires hardwiring to a 32 Amp fuse and should be installed by a qualified installer, such as one of our Tech Experts.
Minimum distance required / Minimum clearance above hob
750 mm
