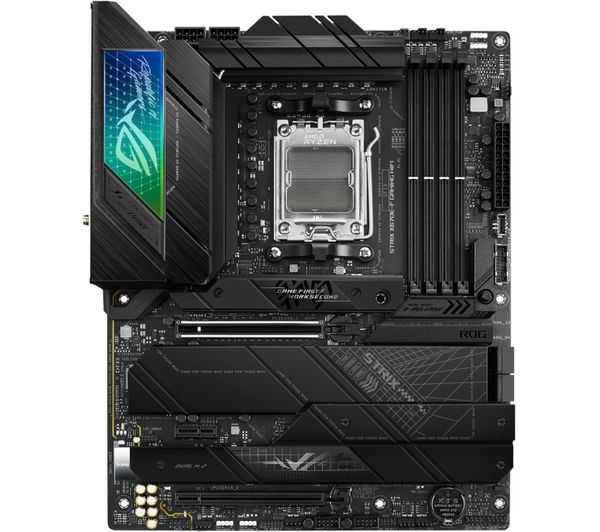

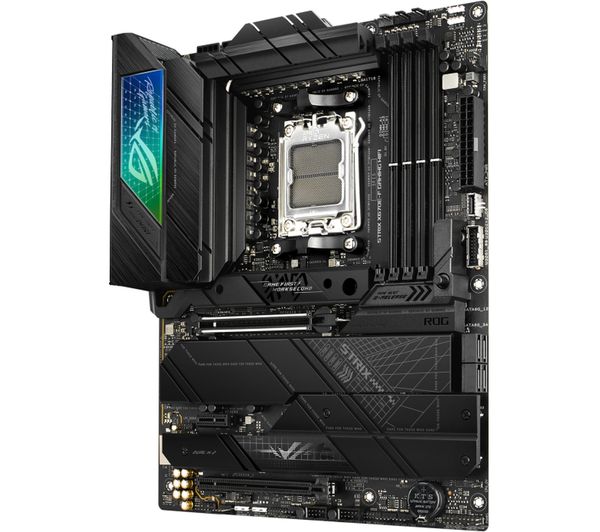

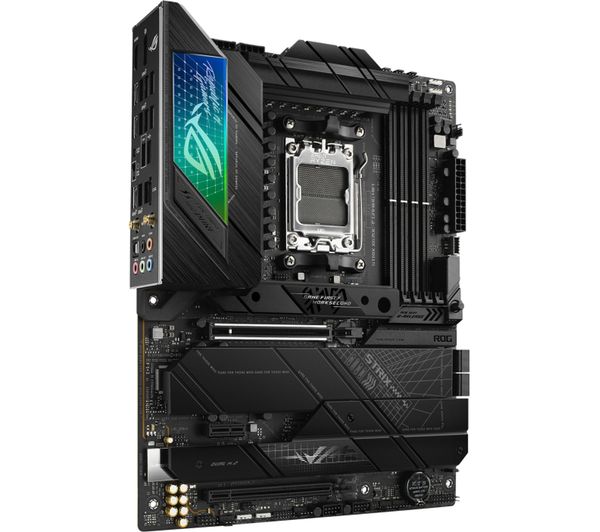

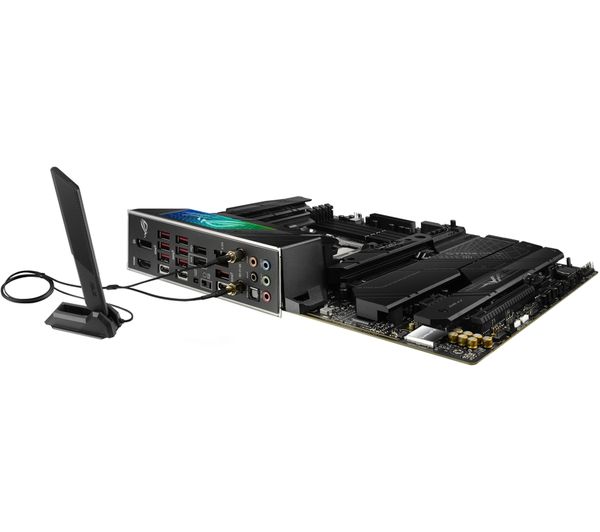

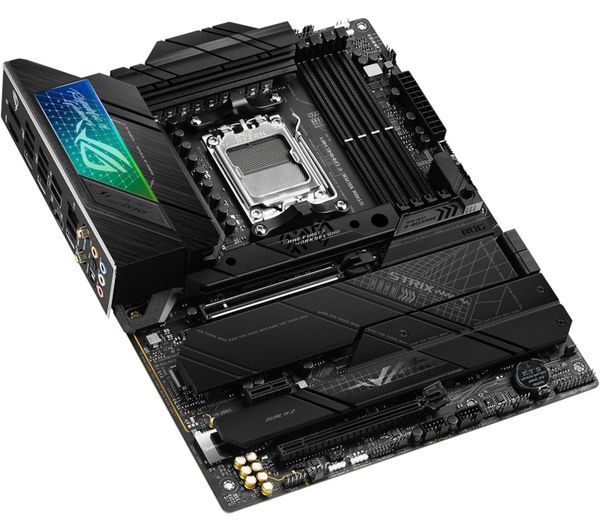

ASUS ROG STRIX X670E-F AM5 Motherboard

(1 customer review)
ASUS
Availability:

In stock
✅ Genuine UK Product
📦 Brand New & Factory Sealed
🛡️ Includes Manufacturer's Warranty
Compare
  • Form factor: ATX
  • Socket: AMD AM5
  • Chipset: AMD X670
  • Memory: DIMM x 4 / Max RAM: 128 GB DDR5
  • 5 years guarantee

£326.76 £389.00
Current price is: €379.40.Original price was: €451.67.

In stock

ASUS ROG STRIX X670E-F AM5 Motherboard

Technical specifications for ASUS ROG STRIX X670E-F AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD X670
Socket
AMD AM5
Processor models supported
AMD Ryzen 7000 Series Desktop Processors
Memory slots
4 x DIMM (Max RAM: 128 GB)
Memory standard
DDR5
Operating systems supported
Windows 11 (64-bit)

EXTERNAL CONNECTIVITY

Video output
– HDMI x 1
– DisplayPort x 1
LAN
Intel® 2.5Gb Ethernet x 1
Audio
Audio jacks x 5
USB
Rear:
– USB Type-C x 3
– USB 3.2 Gen 2 x 7
– USB 2.0 x 2
Front
– USB 3.2 Gen 2×2 (supports USB Type-C) x 1
– USB 3.2 Gen 1 (supports 2 additional USB 3.2 Gen 1 ports) x 1
– USB 2.0 (support 4 additional USB 2.0 ports) x 2
Other external connections
WiFi module x 1

INTERNAL CONNECTIVITY

BIOS
– 256 Mb Flash ROM
– UEFI AMI BIOS
Expansion slots
– PCIe 5.0 (x16) (supports x16 mode) x 1
– PCIe 4.0 (x16) (support x4 mode) x 1
– PCIe 3.0 (x1) x 2
Storage slots
– SATA x 4 (6 GB/s)
– M.2 x 4
Cooling
– 4-pin CPU fan header x 1
– 4-pin CPU OPT fan header x 1
– 4-pin AIO Pump header x 1
– 4-pin chassis fan headers x 5
Case
– Power LED x 1
– HDD LED x 1
– BIOS FlashBack LED x 1
Buttons
– Power
– Reset
– BIOS FlashBack
Power
– 24-pin EATX x 1
– 8-pin ATX 12 V x 2
Sensors
Thermal sensor header x 1
Other internal connections
– Thunderbolt 4 header x 1
– Addressable Gen 2 headers x 3
– Aura RGB header x 1
– Clear CMOS header x 1
– CPU Over Voltage jumper x 1
– Front Panel Audio header (AAFP) x 1
– 20-3 pin System Panel header x 1
USB
– USB 3.2 Gen 1 connector (supports USB Type-C) x 1
– USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) x 1
– USB 2.0 headers (supports 4 additional USB 2.0 ports) x 2

GENERAL

Box contents
– Asus ROG STRIX X670E-F AM5 Motherboard
– I/O Shield
– WiFi antennas
– Cable ties pack
– SATA cables x 2
– M.2 thermal pad
– M.2 Q-Latch package
– M.2 Q-Latch package for M.2 backplate
– M.2 rubber package x 2
– M.2 backplate rubber package x 1
– ROG key chain
– ROG Strix stickers
– ROG Strix thank you card
– User manual
Software included
– Armoury Crate
– AI Suite 3
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III
– Sonic Radar III
– DTS Sound Unbound
– MyAsus
– Norton Anti-virus software (Free Trial version)
– WinRAR
– ASUS EZ DIY
– Dynamic OC Switcher
– FlexKey
Weight
1.7 kg
Manufacturer’s guarantee
5 years
Dimensions
50 x 244 x 305 mm (H x W x D)
Colour
Black
SKU: LHA-4711081891147 Categories: , , Tags: , ,
Weight 1.7 kg
Dimensions 50 × 244 × 305 mm
Brand

ASUS
Colour

Black
Model

X670E-F
EAN

4711081891147

Based on 1 review

5.0 overall
1
0
0
0
0

Add a review

  1. Jonathan J. –

    Quick delivery, good price. I have had some bad customer service experience with JL recently so shopped around and my experience with Lifestylehomeappliances has been excellent. Very happy with my product.

    Jonathan J. –
