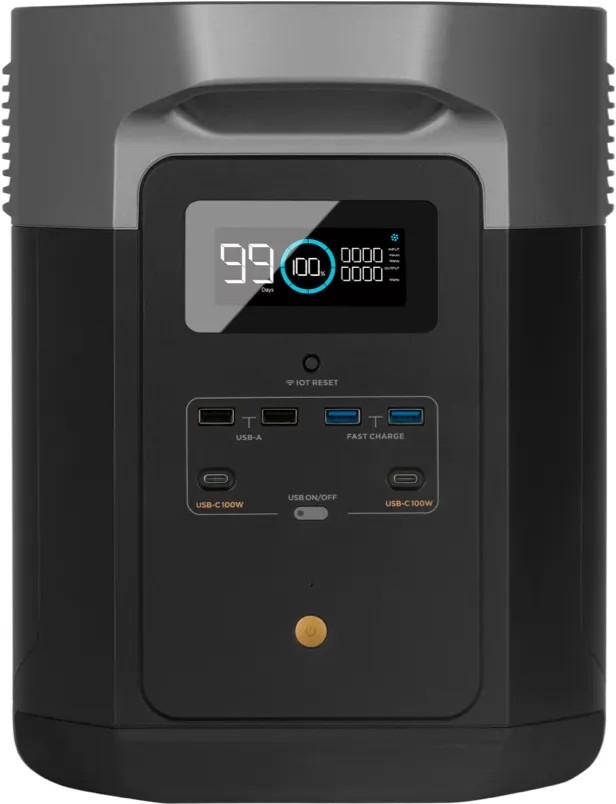

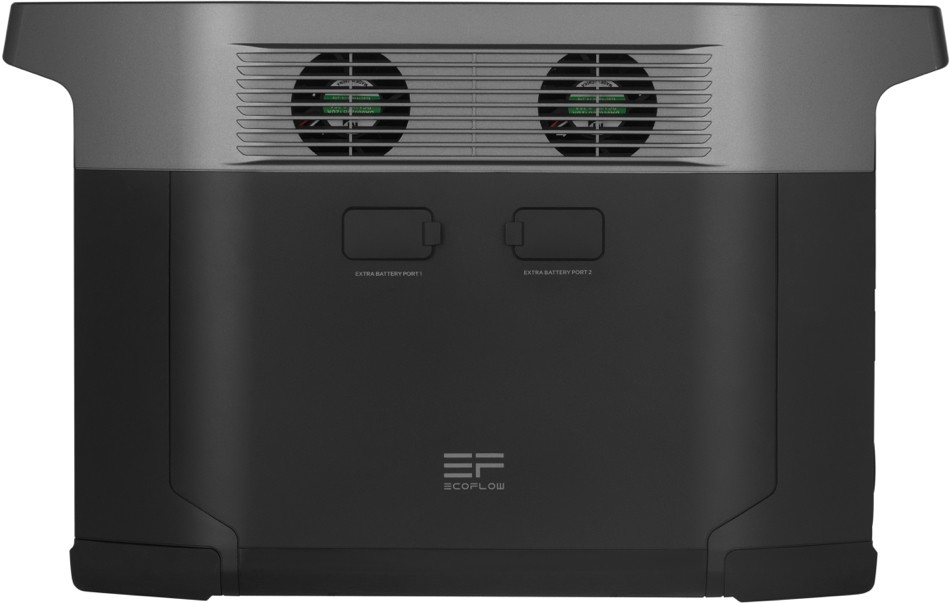

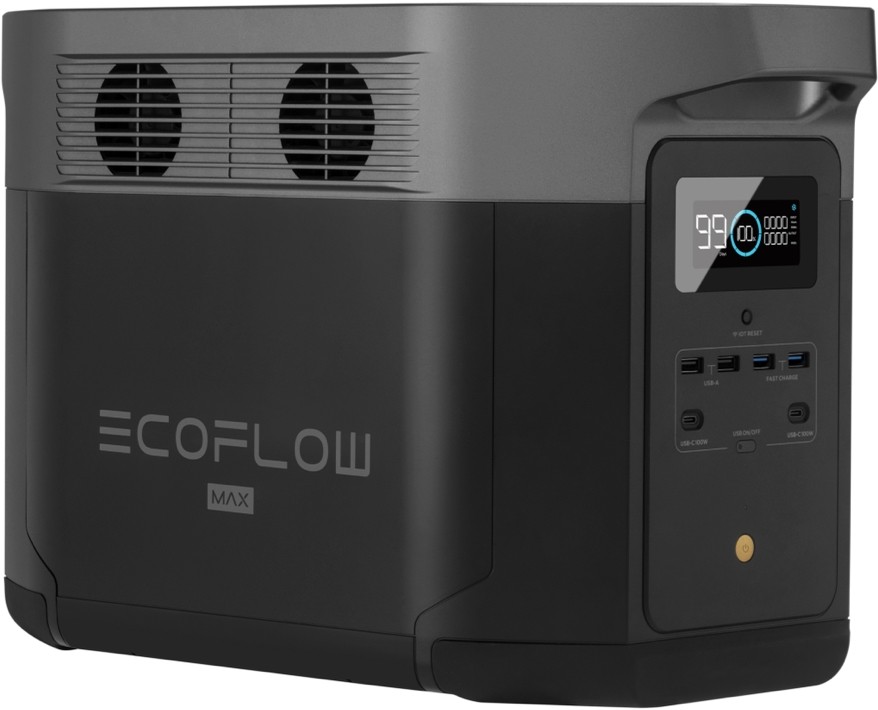

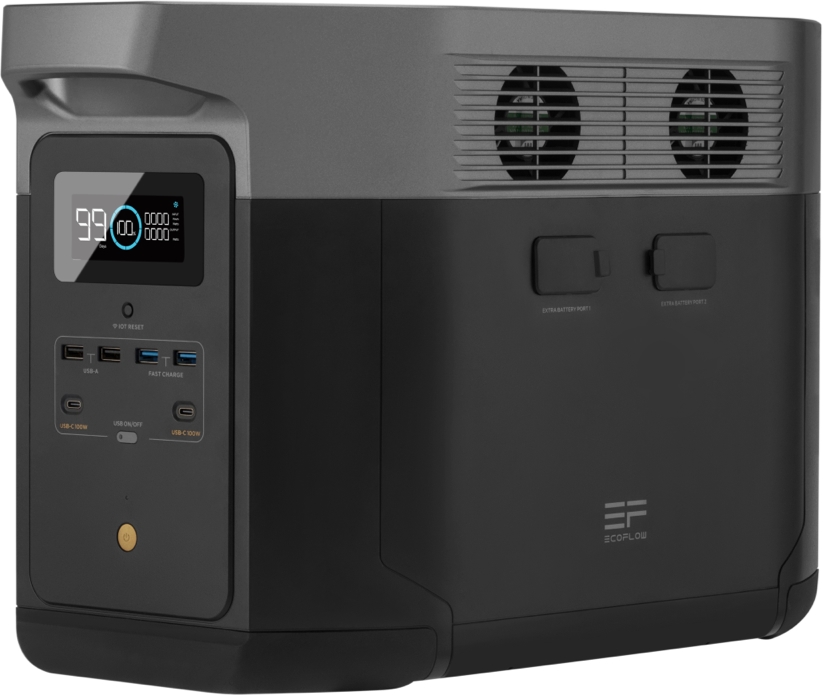

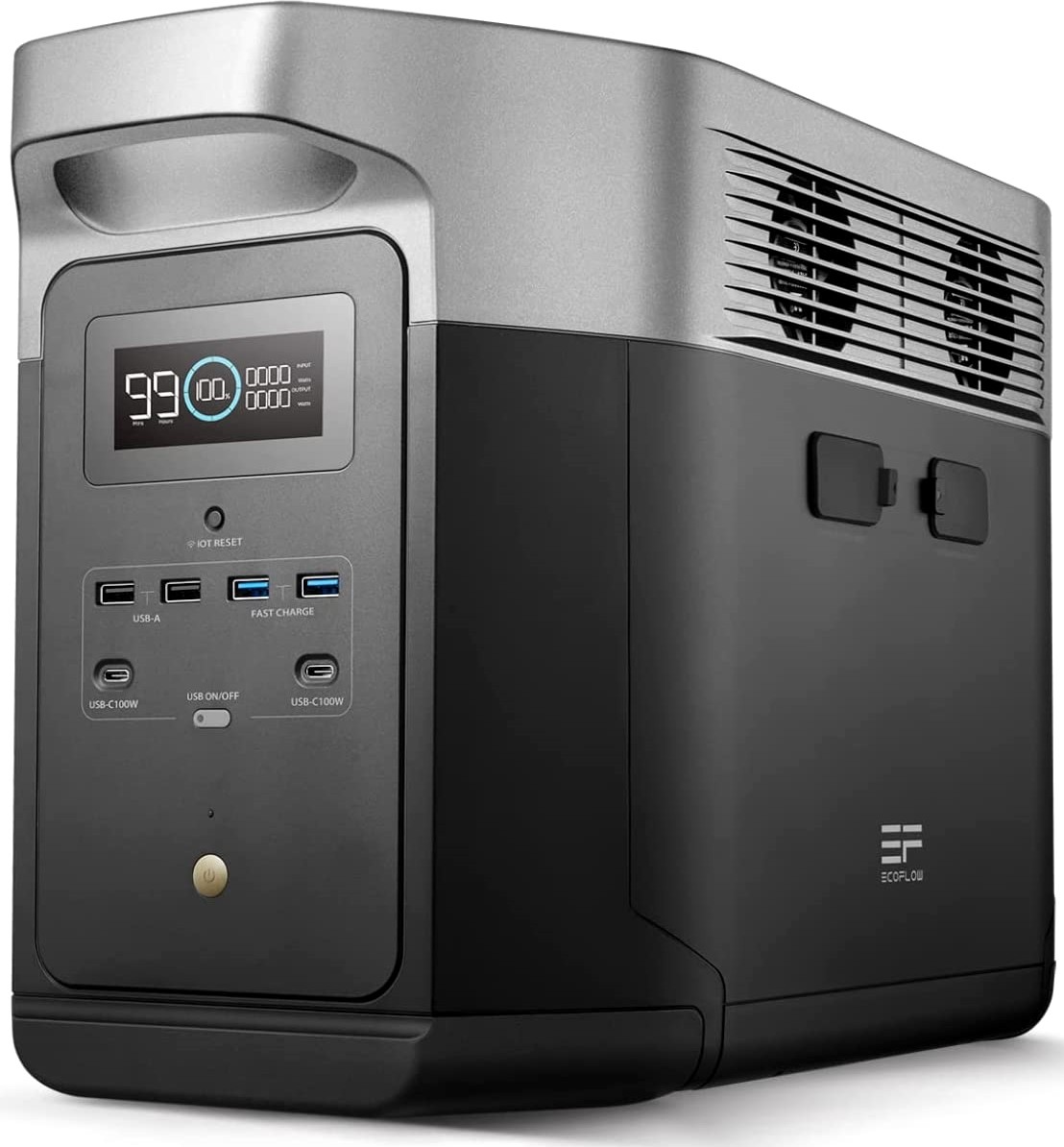

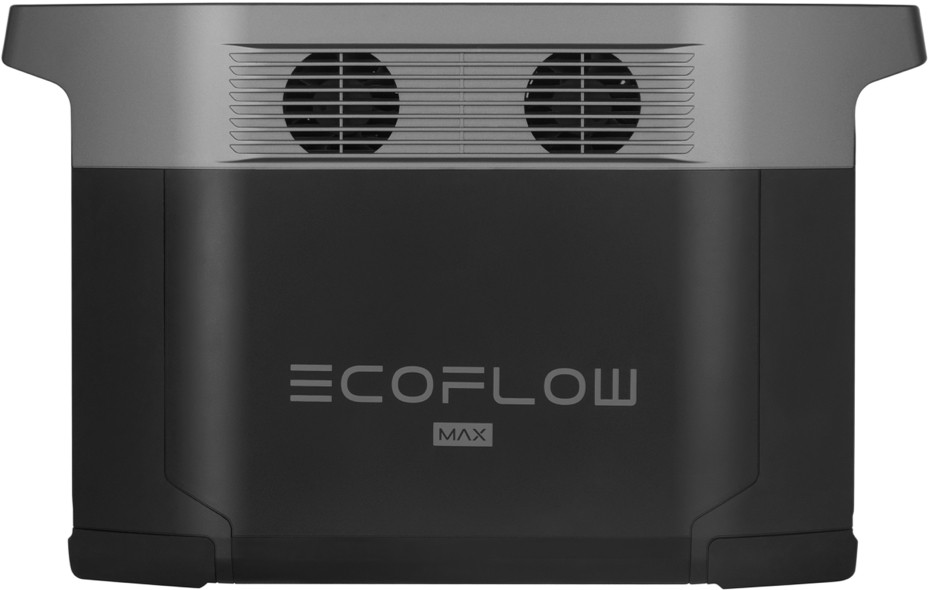

ECOFLOW DELTA Max (2000) 2016 Wh Portable Power Station
Technical specifications for ECOFLOW DELTA Max (2000) 2016 Wh Portable Power Station
OVERVIEW
Plugs / Adapters
– AC charging cable included
– Car charging cable included
– Car charging cable included
Compatibility
Input:
– AC
– Solar charger
– Car chargerOutput:
– AC
– USB Type-A
– USB Type-C
– DC5521
– Car charger
– Supports up to 2 DELTA Max Smart Extra Batteries (sold separately)
– AC
– Solar charger
– Car chargerOutput:
– AC
– USB Type-A
– USB Type-C
– DC5521
– Car charger
– Supports up to 2 DELTA Max Smart Extra Batteries (sold separately)
Connections

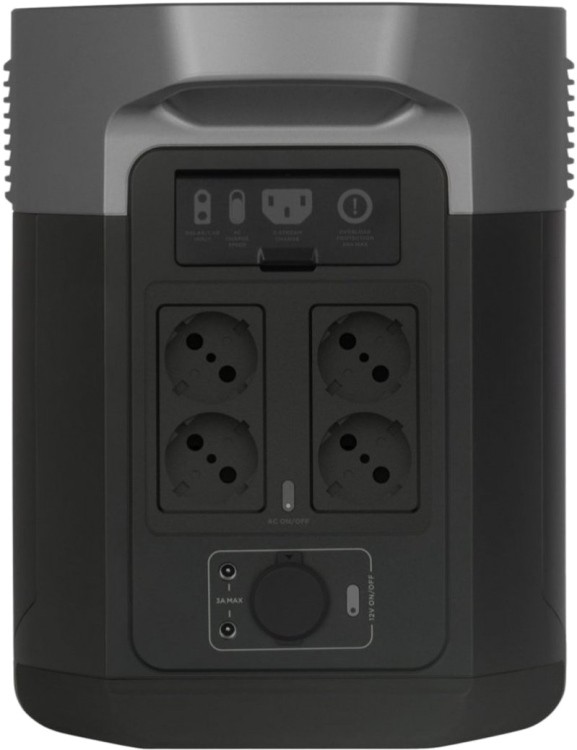

Input:
– AC (2000 W max) x 1
– Solar (800 W max) / Car charger (12 V or 24 V battery) x 1Output:
– AC x 4
– USB Type-C 100 W x 2
– USB Type-A x 4 (including 2 fast charge)
– DC5521 x 2
– Car charger x 1
– AC (2000 W max) x 1
– Solar (800 W max) / Car charger (12 V or 24 V battery) x 1Output:
– AC x 4
– USB Type-C 100 W x 2
– USB Type-A x 4 (including 2 fast charge)
– DC5521 x 2
– Car charger x 1
FEATURES
Other features
– X-Boost voltage control
– Control and monitoring via the EcoFlow app
– Supports up to 2 DELTA Max Smart Extra Batteries (sold separately)
– Testing and Certification: CE WEEE CTP RCM KC
– Cycle life: up to 80%+ capacity after 800 cyclesManagement systems:
BMS, Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection
– Control and monitoring via the EcoFlow app
– Supports up to 2 DELTA Max Smart Extra Batteries (sold separately)
– Testing and Certification: CE WEEE CTP RCM KC
– Cycle life: up to 80%+ capacity after 800 cyclesManagement systems:
BMS, Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection
Unit charge times by power source:
– AC: 96 minutes
– Car charger (12 V): 21 hours
– Solar panels (4 x 110 W): 5.6 – 11.2 hours
– Solar panels (4 x 160 W): 4.2 – 8.4 hours
– Solar panels (2 x 400 W): 3.2 – 6.3 hours
Power
Capacity:
– 2016 Wh ternary Lithium batteryAC output x 4:
– Total: 2400 W
– Surge: 4600 W
– Max supported by X-Boost: 3000 W
– 2016 Wh ternary Lithium batteryAC output x 4:
– Total: 2400 W
– Surge: 4600 W
– Max supported by X-Boost: 3000 W
USB output x 6:
– Type-C x 2 (100 W max)
– Type-A Fast Charge x 2 (18 W max)
– Type-A x 2 (12 W max per port)
DC:
– DC5521 x 2 (12.6 V / 3A per port)
Automobile:
– Car charger x 1 (126 W max)
LED indicators
Yes
GENERAL
Colour
Black & silver

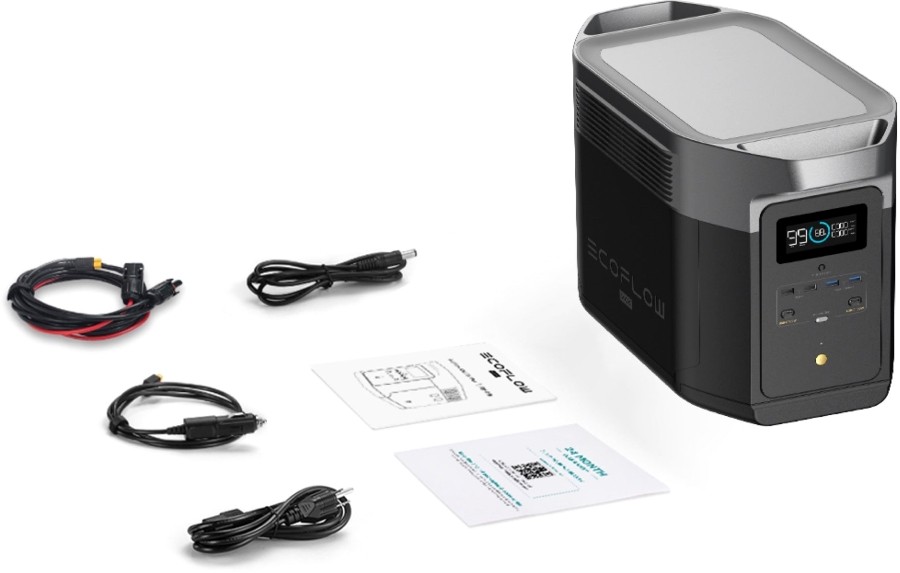

Box contents
– EcoFlow DELTA Max (2000) 2016 Wh Portable Power Station
– AC charging cable
– Car charging cable
– AC charging cable
– Car charging cable
Weight
24.3 kg
Manufacturer’s guarantee
5 years
Dimensions
430 x 355 x 636 mm (H x W x D)
